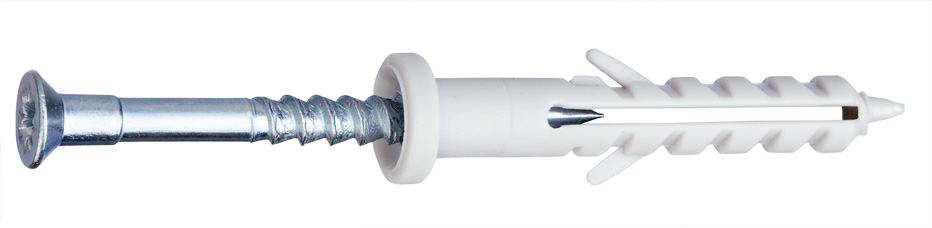

Nail plug ND – DAILY-NAILY
This KTS nail plug made of high quality, impact resistant polyamide (nylon) is ideal for fixing roof battens, metal trims, frames or posts through concrete or masonry. The recessed screw head lets it then be loosened and adjusted.
APPLICATION: concrete, solid blocks, hollow blocks and aerated concrete.
Use
For quick processing, the nail plug can simply be hammered in with a hammer. The cross-slot allows the screw nail to be loosened for readjustment.
Note
This information should be considered as a general recommendation. This information should be regarded as general recommendations. More specifically, please note that these plugs and anchors may not be used for work subject to building inspections (e.g. for securing façade substructures, roofs etc.).
* Safety factor 3
| Technical data ND-S Nail plug with countersunk head | ||||
|---|---|---|---|---|
| Small packaging | Article-No. | Packaging unit | Weight per packing unit | Screw nail Ø mm + length |
| 5 x 30 mm | 1330503041 | 200 / 2.000 | 4.6 kg. | 3,3 x 31 |
| 5 x 40 mm | 1330504041 | 200 / 2.000 | 6.0 kg. | 3,3 x 41 |
| 5 x 50 mm | 1330505041 | 200 / 2.000 | 7.2 kg. | 3,3 x 51 |
| 6 x 40 mm | 1330604041 | 200 / 2.000 | 7.2 kg. | 3,85 x 41 |
| 6 x 50 mm | 1330605041 | 200 / 2.000 | 10.0 kg. | 3,85 x 51 |
| 6 x 60 mm | 1330606041 | 200 / 2.000 | 11.0 kg. | 3,85 x 61 |
| 6 x 80 mm | 1330608041 | 100 / 1.000 | 7.2 kg. | 3,85 x 81 |
| 8 x 60 mm | 1330806041 | 100 / 1.000 | 8.9 kg. | 4,85 x 61 |
| 8 x 80 mm | 1330808041 | 100 / 1.000 | 11.6 kg. | 4,85 x 81 |
| 8 x 100 mm | 1330810041 | 100 / 1.000 | 14.8 kg. | 4,85 x 101 |
| 8 x 120 mm | 1330812041 | 100 / 500 | 9.0 kg. | 4,85 x 121 |
| 8 x 140 mm | 1330814041 | 100 / 500 | 10.0 kg. | 4,85 x 141 |
| 8 x 160 mm | 1330816041 | 100 / 500 | 12.0 kg. | 4,85 x 161 |
| Performance Data ND-Z Nail Dowel with Cylinder Head | ||||
|---|---|---|---|---|
| Small packaging | Article-No. | Packaging unit | Weight per packing unit | Screw nail Ø mm + length |
| 5 x 30 mm | 3330503041 | 200 / 2.000 | 4.6 kg. | 3,3 x 31 |
| 5 x 40 mm | 3330504041 | 200 / 2.000 | 6.0 kg. | 3,3 x 41 |
| 5 x 50 mm | 3330505041 | 200 / 2.000 | 7.2 kg. | 3,3 x 51 |
| 6 x 40 mm | 3330604041 | 200 / 2.000 | 7.2 kg. | 3,85 x 41 |
| 6 x 50 mm | 3330605041 | 200 / 2.000 | 10.0 kg. | 3,85 x 51 |
| 6 x 60 mm | 3330606041 | 200 / 2.000 | 11.0 kg. | 3,85 x 61 |
| 6 x 80 mm | 3330608041 | 100 / 1.000 | 7.2 kg. | 3,85 x 81 |
| 8 x 60 mm | 3330806041 | 100 / 1.000 | 8.9 kg. | 4,85 x 61 |
| 8 x 80 mm | 3330808041 | 100 / 1.000 | 11.6 kg. | 4,85 x 81 |
| 8 x 100 mm | 3330810041 | 100 / 1.000 | 14.8 kg. | 4,85 x 101 |
| 8 x 120 mm | 3330812041 | 100 / 500 | 9.0 kg. | 4,85 x 121 |
| 8 x 140 mm | 3330814041 | 100 / 500 | 10.0 kg. | 4,85 x 141 |
| 8 x 160 mm | 3330816041 | 100 / 500 | 12.0 kg. | 4,85 x 161 |
| Werksprüfung ND – Nail plug with pre-mounted screw nail | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material: NYLON (polyamide 6) | |||||||||||||
| Diameter mm | 5 | 5 | 5 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 |
| Length mm | 30 | 40 | 50 | 40 | 50 | 60 | 80 | 60 | 80 | 100 | 120 | 140 | 160 |
| Drill hole Ø mm | 5 | 5 | 5 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 |
| Minimum hole depth mm | 40 | 50 | 60 | 50 | 60 | 70 | 90 | 70 | 90 | 110 | 130 | 140 | 170 |
| Minimum anchorage depth mm | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 40 | 40 | 40 | 40 | 40 | 40 |
| Maximum useful length mm | 5 | 10 | 30 | 10 | 20 | 30 | 50 | 20 | 40 | 60 | 80 | 100 | 120 |
| Concrete pull-out value (kN)* | 0,30 | 0,40 | 0,40 | 0,60 | 0,60 | 0,60 | 0,60 | 1,00 | 1,00 | 1,00 | 1,00 | 1,00 | 1,00 |
Function ND – Nail plug with pre-mounted screw nail
